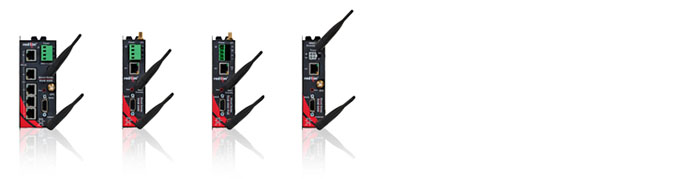

RAM® 6000 Cellular RTUs

Overview:
Red Lion’s Sixnet® series RAM® 6000 cellular RTUs with GPS and multi-carrier 4G LTE support, feature up to five Ethernet ports and a RS-232 serial port. Featuring a web-based event engine that can trigger built-in I/O or send SMS text messages based on real-time operational data, RAM cellular RTUs can perform advanced control and communications for monitoring and controlling remote assets and processes in extreme conditions.

Cellular:
RAM 6000 cellular RTUs are available in 4G LTE with multi-carrier support and single-carrier 3G support. 4G LTE multi-carrier models feature the ability to change cellular carrier networks via software selection without the need to replace physical hardware. This gives customers the flexibility to choose from a host of carriers that serve different locations.

Connectivity:
Natively supporting Modbus, DNP3 and MQTT protocols, RAM 6000 industrial RTUs include digital and analog I/O. Built-in I/O helps to eliminate the need for external I/O to control applications. Our cellular RTUs are available with an optional split-LAN (WAN/LAN) architecture and features up to five 10/100Base-T(X) Ethernet ports. They also feature one RS-232 serial port supporting serial-to-IP conversion.

Industrial Internet of Things (IIoT) Cloud Connectivity: Red Lion’s RAM® industrial cellular RTUs feature cloud connectivity, which allows for reliable, secure and scalable communication to leading IIoT cloud platforms.  RAMQTT, Red Lion’s native MQTT client, simplifies implementations with pre-configured profiles for AT&T® M2XTelenor ConnexionAmazon® AWS™ IoT, and AutoDesk® Fusion Connect. This functionality enables organizations to easily establish communication and start pushing data to select cloud platforms in minutes. Using the RAM software development kit (SDK), connectivity can be configured for additional platforms, including Telit® deviceWISE®, Set-Point IPwebcontrol, LEC IQ Web SCADA and Skkynet® Skkyhub™, to seamlessly connect, monitor and control equipment.

Event Engine:
With an intuitive web-based, menu-driven interface that requires no knowledge of programming languages, the powerful RAM event engine can quickly be configured to trigger actions when pre-defined alarm values are met. For example, if a tank level is too high or a pressure level is out of range, the RAM event engine will not only cycle a relay to stop a pump or close a valve, but can also send text message notifications to alert when actions should be taken.

Security:
Designed to deliver secure communications to remote locations, our industrial cellular RTUs support robust security features such as VPN tunnels, port forwarding, stateful firewall, packet filtering, data encryption and an Access Control List (ACL).

Management:
Each RAM 6000 cellular RTU can be managed locally through direct device connection or remotely via SixView Manager® software. Our flexible remote management software package is designed to increase productivity and reduce cost for organizations using Sixnet series industrial cellular RTUs. With a web-based console and customized dashboard, users are able to remotely access, configure and manage critical device information from a central location.

Products:

Part # Carrier Network Technology Ethernet Ports Power Input
RAM-6900-AM N.A. Generic 4G 1 8-30VDC, Molex Connector
RAM-6900-AT AT&T 4G 1 8-30VDC, Molex Connector
RAM-6900-EU EU/Asia Generic 4G 1 8-30VDC, Molex Connector
RAM-6900-JP Japan 4G 1 8-30VDC, Molex Connector
RAM-6900-VZ Verizon 4G 1 8-30VDC, Molex Connector
RAM-6901-AM N.A. Generic 4G 1 8-30VDC, Screw Connector
RAM-6901-AT AT&T 4G 1 8-30VDC, Screw Connector
RAM-6901-EU EU/Asia Generic 4G 1 8-30VDC, Screw Connector
RAM-6901-JP Japan 4G 1 8-30VDC, Screw Connector
RAM-6901-VZ Verizon 4G 1 8-30VDC, Screw Connector
RAM-6901EB-AM N.A. Generic 4G 1 PoE
RAM-6901EB-AT AT&T 4G 1 PoE
RAM-6901EB-EU EU/Asia Generic 4G 1 PoE
RAM-6901EB-JP Japan 4G 1 PoE
RAM-6901EB-VZ Verizon 4G 1 PoE
RAM-6921-AM N.A. Generic 4G 5 8-30VDC, Screw Connector
RAM-6921-AT AT&T 4G 5 8-30VDC, Screw Connector
RAM-6921-EU EU/Asia Generic 4G 5 8-30VDC, Screw Connector
RAM-6921-JP Japan 4G 5 8-30VDC, Screw Connector
RAM-6921-VZ Verizon 4G 5 8-30VDC, Screw Connector
RAM-6700-AT AT&T 4G 1 8-30VDC, Molex Connector
RAM-6700-AT-AC AT&T 4G 1 AC Adapter
RAM-6700-AT-MX AT&T 4G 1 AC Adapter, Molex Connector
RAM-6700-GE Generic 4G 1 8-30VDC, Molex Connector
RAM-6700-GE-AC Generic 4G 1 AC Adapter
RAM-6700-TE Telus 4G 1 8-30VDC, Molex Connector
RAM-6700-TE-AC Telus 4G 1 AC Adapter
RAM-6700-TE-MX Telus 4G 1 AC Adapter, Molex Connector
RAM-6701-AT AT&T 4G 1 8-30VDC, Screw Connector
RAM-6701-AT-AC AT&T 4G 1 AC Adapter
RAM-6701-BM Bell Mobility 4G 1 8-30VDC, Screw Connector
RAM-6701-GE Generic 4G 1 8-30VDC, Screw Connector
RAM-6701-GE-AC Generic 4G 1 AC Adapter
RAM-6701-TE Telus 4G 1 8-30VDC, Screw Connector
RAM-6701-TE-AC Telus 4G 1 AC Adapter
RAM-6701EB-AT AT&T 4G 1 PoE
RAM-6701EB-GE Generic 4G 1 PoE
RAM-6701EB-TE Telus 4G 1 PoE
RAM-6721-AT AT&T 4G 5 8-30VDC, Screw Connector
RAM-6721-AT-AC AT&T 4G 5 AC Adapter
RAM-6721-GE Generic 4G 5 8-30VDC, Screw Connector
RAM-6721-GE-AC Generic 4G 5 AC Adapter
RAM-6721-TE Telus 4G 5 8-30VDC, Screw Connector
RAM-6721-TE-AC Telus 4G 5 AC Adapter
RAM-6800-AT AT&T 3G 1 8-30VDC, Molex Connector
RAM-6800-AT-AC AT&T 3G 1 AC Adapter
RAM-6800-AT-MX AT&T 3G 1 AC Adapter, Molex Connector
RAM-6800-BM Bell Mobility 3G 1 8-30VDC, Molex Connector
RAM-6800-BM-AC Bell Mobility 3G 1 AC Adapter
RAM-6800-BM-MX Bell Mobility 3G 1 AC Adapter, Molex Connector
RAM-6800-GE Generic 3G 1 8-30VDC, Molex Connector
RAM-6800-GE-AC Generic 3G 1 AC Adapter
RAM-6800-GE-MX Generic 3G 1 AC Adapter, Molex Connector
RAM-6801-AT AT&T 3G 1 8-30VDC, Screw Connector
RAM-6801-AT-AC AT&T 3G 1 AC Adapter
RAM-6801-BM Bell Mobility 3G 1 8-30VDC, Screw Connector
RAM-6801-BM-AC Bell Mobility 3G 1 AC Adapter
RAM-6801-GE Generic 3G 1 8-30VDC, Screw Connector
RAM-6801-GE-AC Generic 3G 1 AC Adapter
RAM-6801EB-AT AT&T 3G 1 PoE
RAM-6801EB-BM Bell Mobility 3G 1 PoE
RAM-6801EB-GE Generic 3G 1 PoE
RAM-6821-AT AT&T 3G 5 8-30VDC, Screw Connector
RAM-6821-AT-AC AT&T 3G 5 AC Adapter
RAM-6821-BM Bell Mobility 3G 5 8-30VDC, Screw Connector
RAM-6821-BM-AC Bell Mobility 3G 5 AC Adapter
RAM-6821-GE Generic 3G 5 8-30VDC, Screw Connector
RAM-6821-GE-AC Generic 3G 5 AC Adapter
RAM-6600-VZ Verizon 3G 1 8-30VDC, Molex Connector
RAM-6600-VZ-AC Verizon 3G 1 AC Adapter
RAM-6600-VZ-MX Verizon 3G 1 AC Adapter, Molex Connector
RAM-6601-VZ Verizon 3G 1 8-30VDC, Screw Connector
RAM-6601-VZ-AC Verizon 3G 1 AC Adapter
RAM-6601EB-VZ Verizon 3G 1 PoE
RAM-6621-VZ Verizon 3G 5 8-30VDC, Screw Connector
RAM-6621-VZ-AC Verizon 3G 5 AC Adapter
