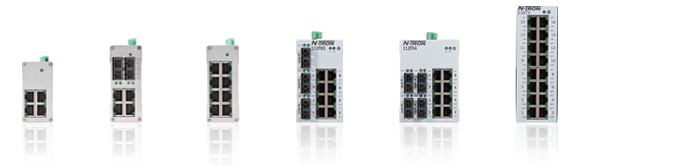

N-Tron® 100 Unmanaged Ethernet Switches

Broad-range of Economical Unmanaged Ethernet Switches

Red Lion’s N-Tron® series 100 unmanaged Ethernet switches offer an array of port configurations and feature a wide operating temperature range. The budget-saving 100 line provides excellent EMI protection and offer hardened metal DIN-rail mountable enclosures to expand your industrial Ethernet network.

  Part Number Total Ports 10 / 100 100 Fiber Operating Temp Power Input IP Rating Mounting-Case
  104TX 4 4 - -40˚ to 80˚C 10-30VDC IP30 DIN Rail - Metal
  105TX 5 5 - -40˚ to 80˚ C 10-30VDC IP30 DIN Rail - Metal
  105TX-SL 5 5 - -40˚ to 85˚ C 10-30VDC IP30 DIN Rail - Metal
  105FX 5 4 1 -40˚ to 70˚ C 10-30VDC IP30 DIN Rail - Metal
  106FX2 6 4 2 -40˚ to 70˚C 10-30VDC IP30 DIN Rail - Metal
  108TX 8 8 - -40˚ to 70˚C 10-30VDC IP30 DIN Rail - Metal
  110FX2 10 8 2 -40˚ to 80˚C 10-49VDC IP20 DIN Rail - Metal
  111FX3 11 8 3 -40˚ to 80˚C 10-49VDC IP20 DIN Rail - Metal
  112FX4 12 8 4 -40˚ to 80˚C 10-49VDC IP20 DIN Rail - Metal
  114FX6 14 8 6 -40˚ to 80˚C 10-49VDC IP20 DIN Rail - Metal
  116TX 16 16 - -40˚ to 85˚C 10-49VDC IP20 DIN Rail - Metal

  Part Number Total Ports 10 / 100 100 Fiber Operating Temp Power Input IP Rating Mounting-Case
  105M12 5 5 - -40˚ to 80˚C 10-30VDC IP67 Bulkhead - Metal
  108M12 8 8 - -40˚ to 80˚C 10-30VDC IP67 Bulkhead - Metal
